2022 wholesale price Modern Lamp Posts - TXLED-08 Module LED street light IP66 -Tianxiang Detail:

Description

Single group 30w-50w customizable LED module street lamp cap material description:
● The lamp body adopts modular structure design, with atmospheric and beautiful appearance and dry mouth and moon for all kinds of road lighting.
● The module radiating body adopts high-quality aviation aluminum profile, one-piece structure and large radiating area.
● The lamp body lens is made of high-quality PC material, which has the advantages of high diffusion, high light transmittance, no glare, no light shadow, UV resistance, fuel resistance, long service life and so on.
● The module lens adopts the in-depth design of anti glare, without glare and light leakage, and has stronger penetration in rainy and zero weather.
● The exposed fasteners and screws of the lamp body are stainless steel 304 screws, which have anti-corrosion effect, are not easy to rust, and are durable.
● The power box of street lamp body is made of thickened high-quality die-casting aluminum, and the surface is electrostatically sprayed with plastic, which is corrosion-resistant and does not fade.
● Shell color can be customized according to customer requirements.
● Diameter of lamp socket road lamp pole support arm tube: φ 60mm.

Led bead configuration description:
● The aluminum substrate adopts chip type 3030 LED lamp beads, lumen like lamp beads and other specifications, with strong penetration and high light efficiency.
● Lamp bead chip can be equipped with: Philips, OSRAM, Purui, Taiwan Jingyuan and other mainstream high luminous efficiency LED chips.
● Luminous efficiency of lamp beads: 110-130lm / W color rendering index: ≥ 80RA.
● Color temperature of light source: 3000k-6500k, warm white light positive white light cold white light.
● Street lamp head single-mode group lamp bead string and optional: 30pcs, 40pcs, 50pcs, 55pcs, 56pcs.

Power drive configuration:
● The power supply adopts high-quality waterproof temporary current driving power supply, with stable driving performance and strong lightning resistance.
● Power factor: ≥ 0.95.
● Input voltage: AC220V 50Hz, AC DC 12V, 24V.

1-qx-t8

Features: Advantages:

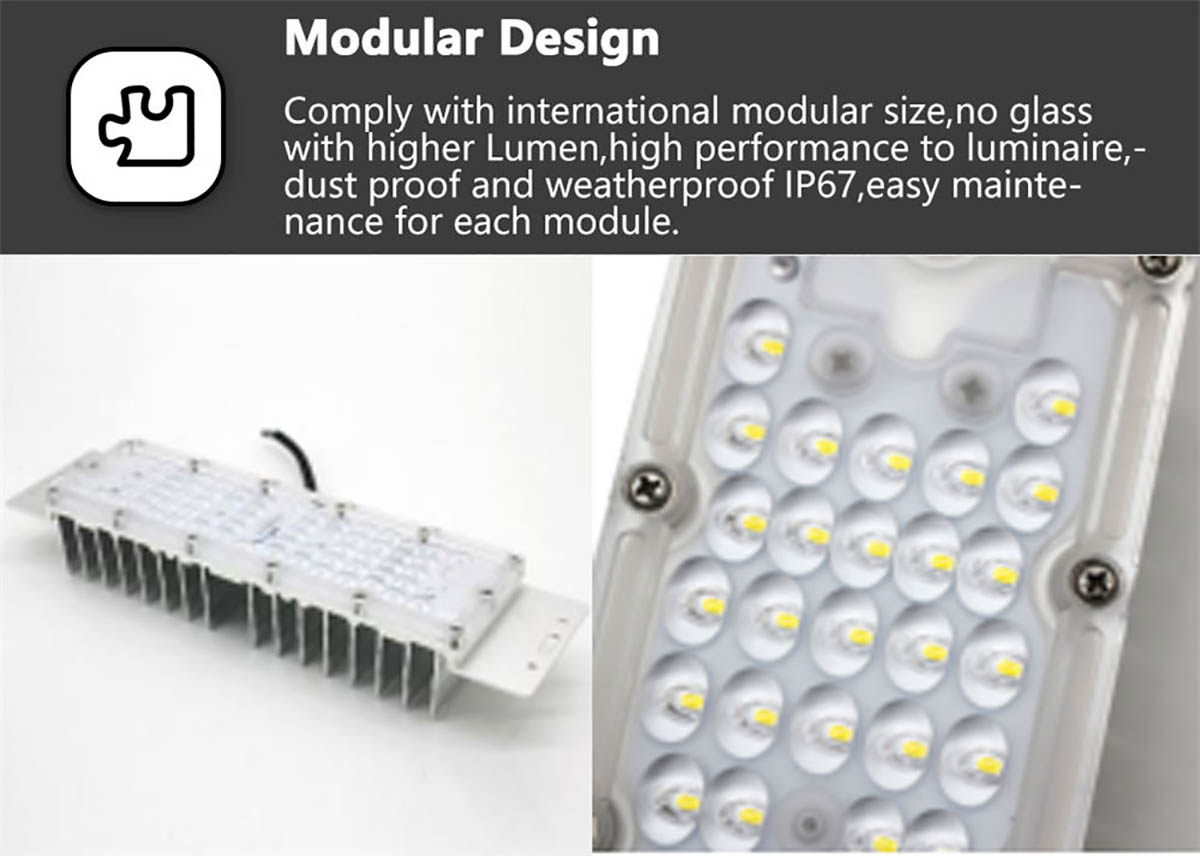

1. Modular Design:Comply with International modular size,30W-60W/module,with higher lighting efficiency.

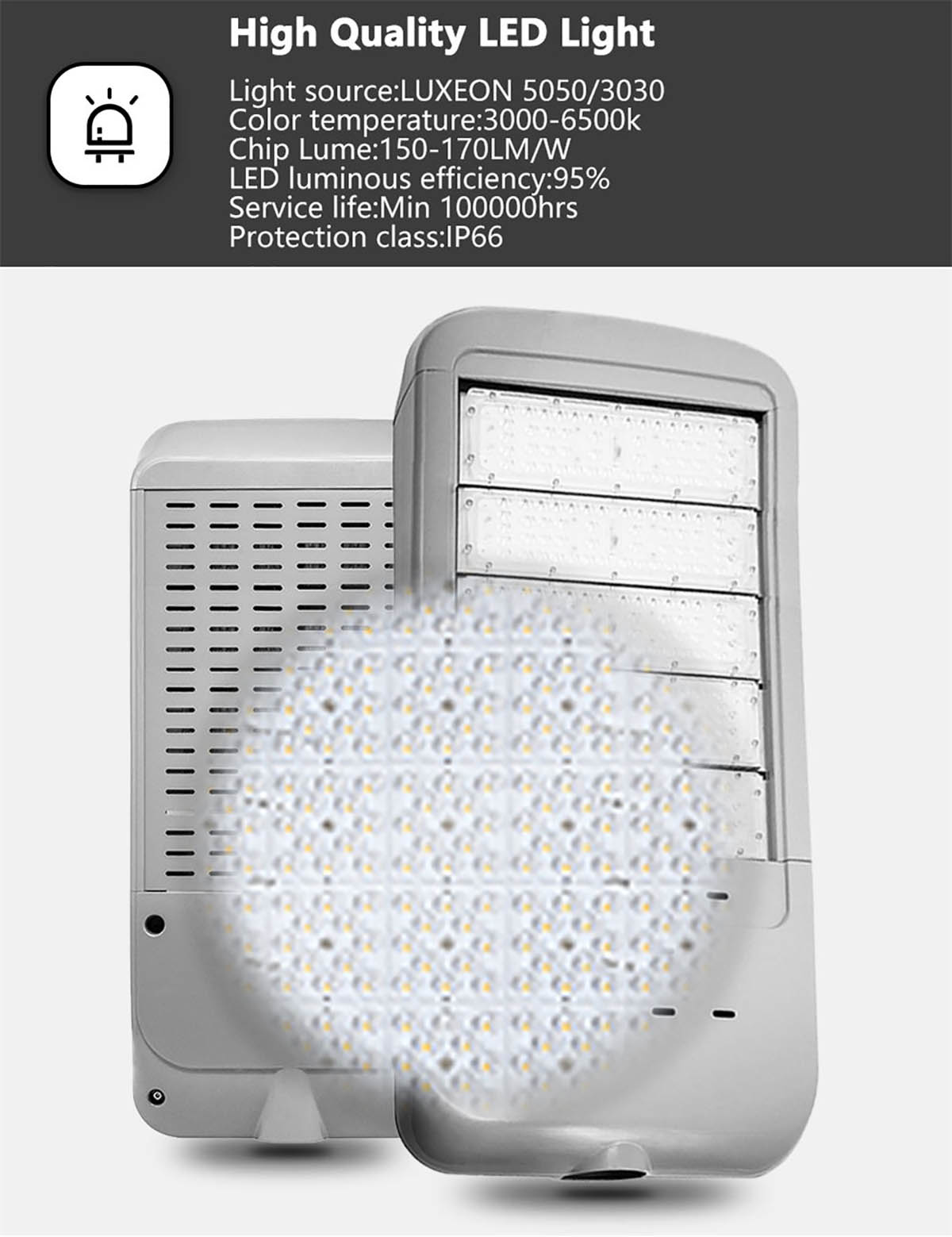

2. Chip:Philips 3030/5050 chip and Cree Chip,up to 150-180LM/W.

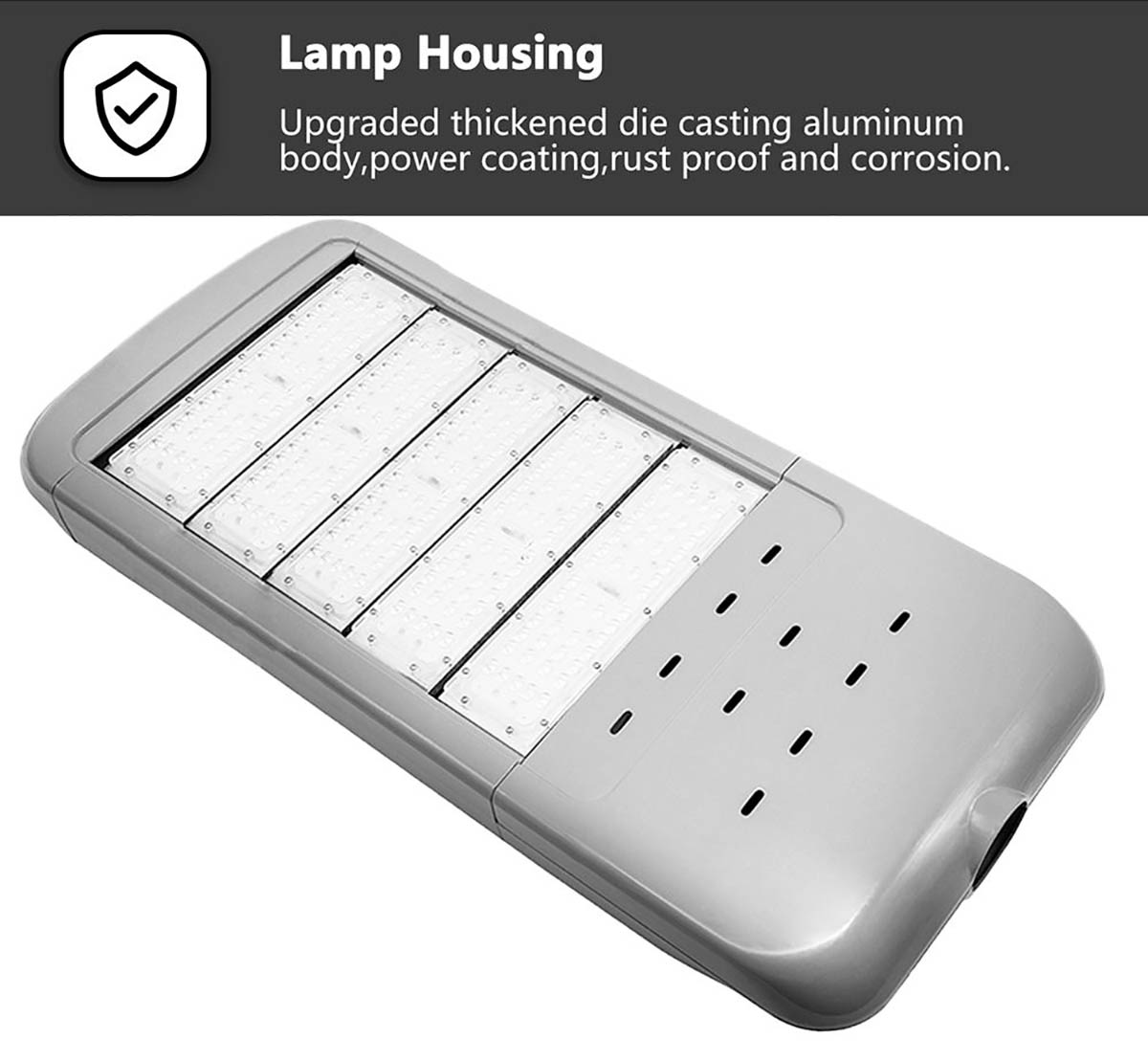

3. Lamp Housing:Upgraded thickened die casting aluminum body,power coating,rust proof and corrosion.
4. Lens:Follows the North American IESNA standard with wider lighting range.

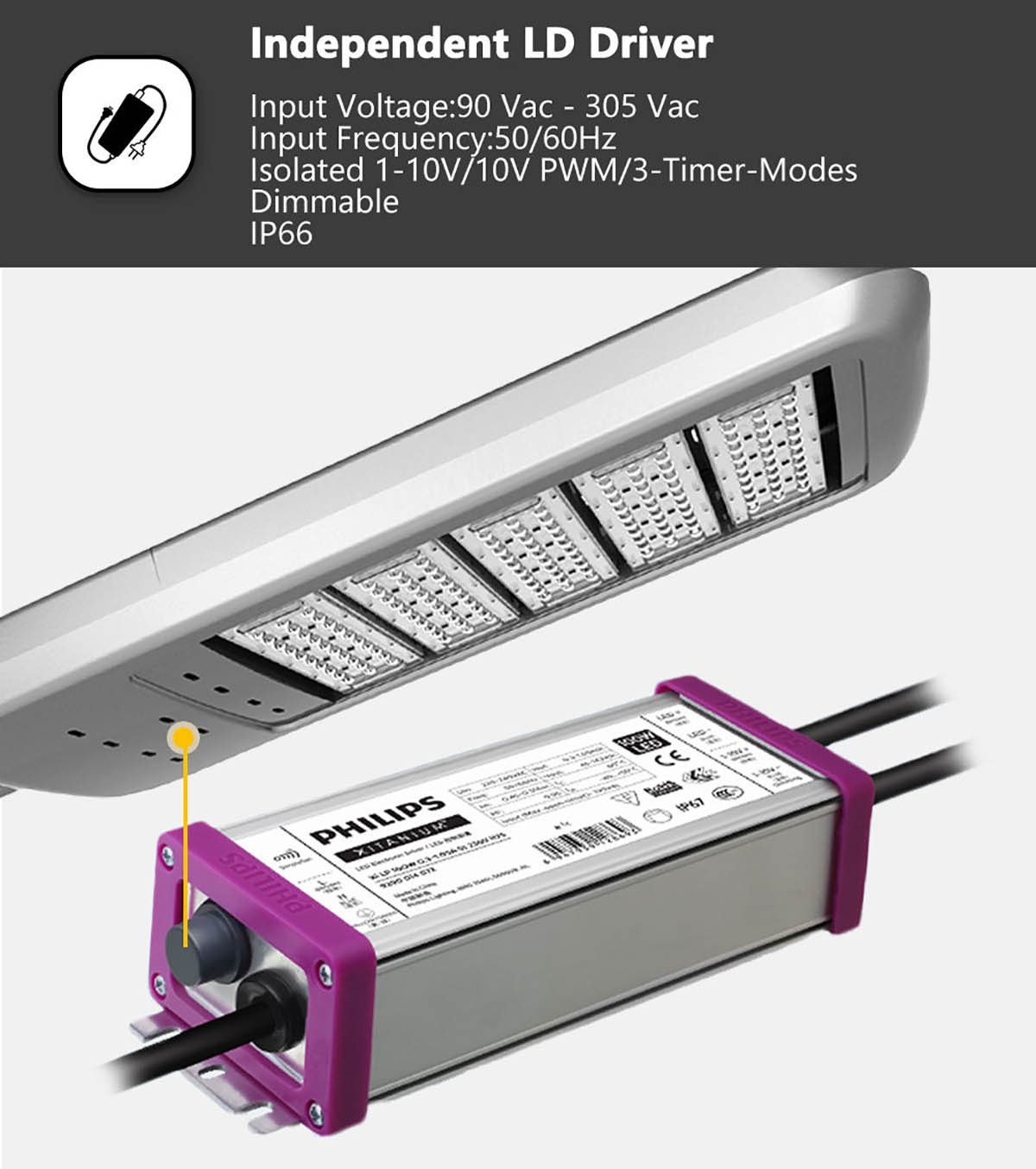

5. Driver:Famous brand Meanwell driver(P.S:DC12V/24V without driver, AC 90V-305V with driver).		 1. Modular design: no glass with higher Lumen,dust proof and weatherproof IP67,maintenance easily.
2. Instant start, no flashing.
3. Solid State, shockproof.
4. No RF Interference.
5. No mercury or other hazardous materials, accord with RoHs.

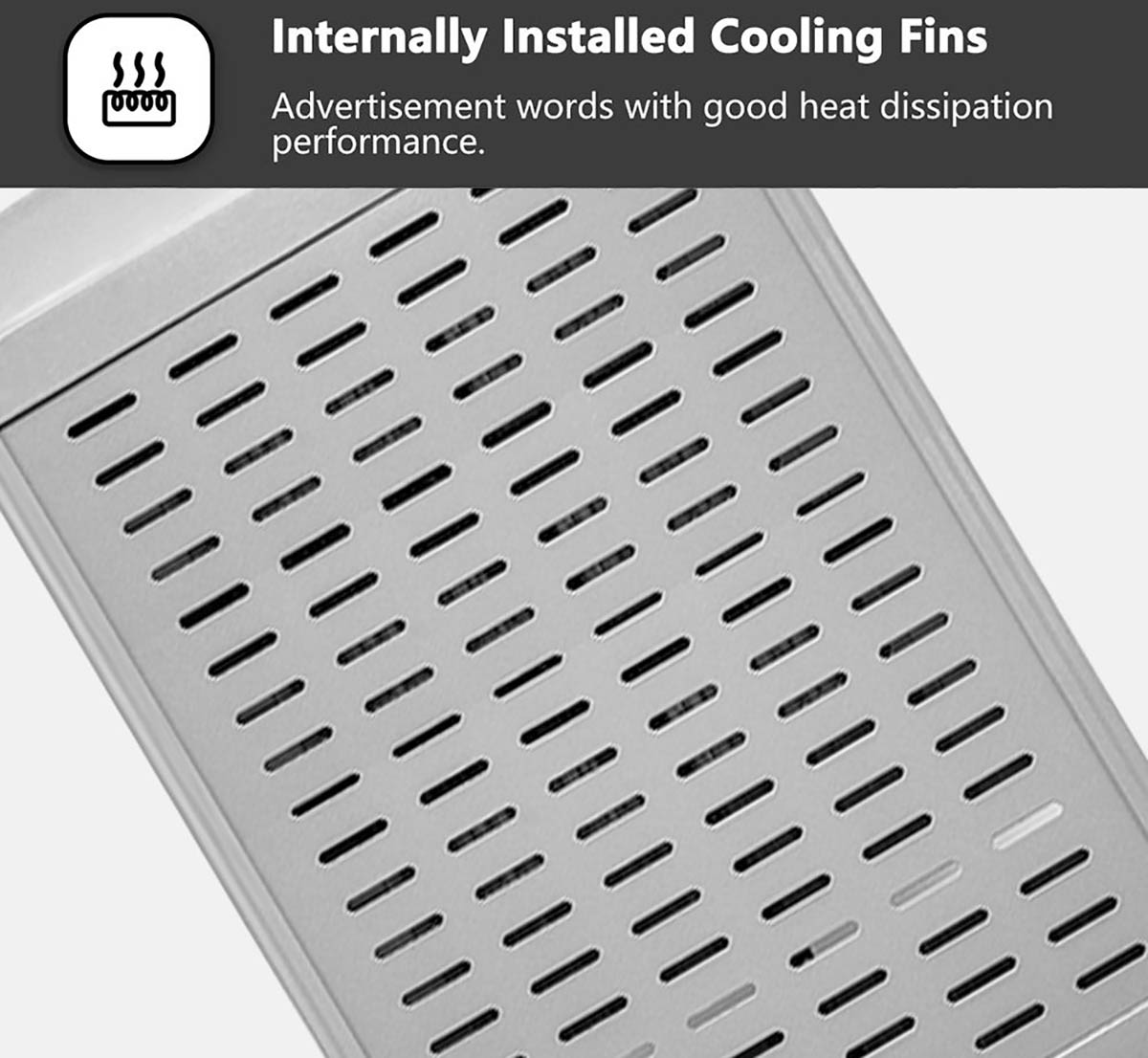

6. Great heat dissipation and guarantee the life of LED bulb.
7. Use stainless screws for whole luminare,no corrosion and dust worry.
8. Energy saving and low power consumption and longer lifespan ＞80000hrs.
9. 5 years warranty.

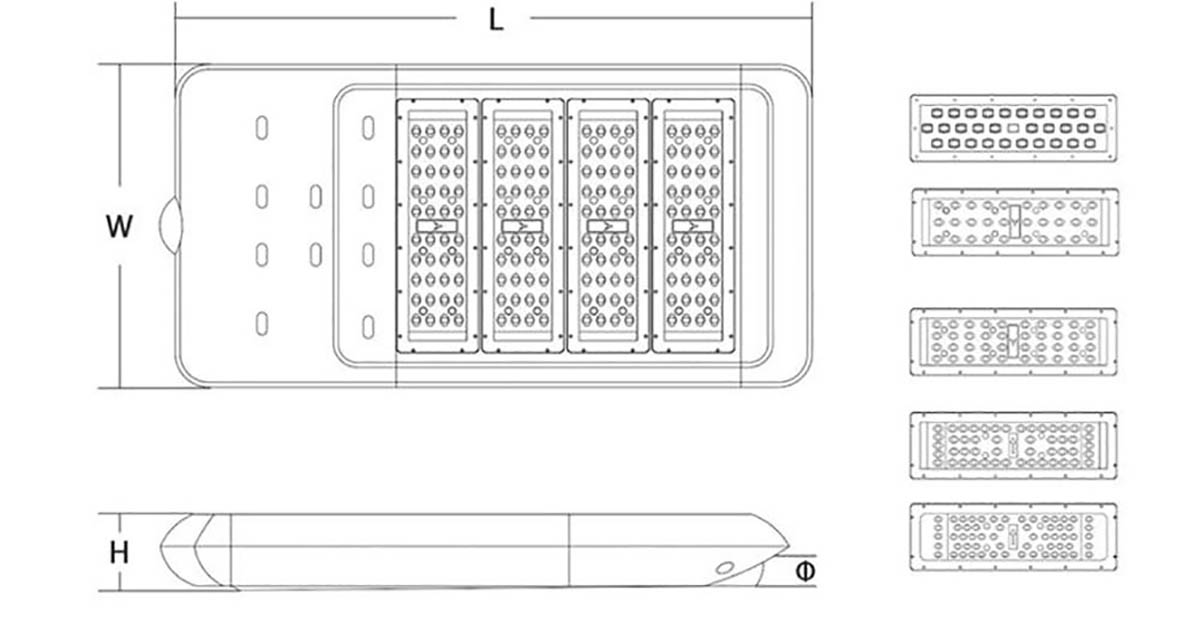

Model L(mm) W(mm) H(mm) ⌀(mm) Weight(Kg)
A 420 355 80 40~60 6
B 500 355 80 40~60 7
C 580 355 80 40~60 8
D 660 355 80 40~60 9
E 740 355 80 40~60 10
F 820 355 80 40~60 11
G 900 355 80 40~60 12
H 980 355 80 40~60 13
I 1060 355 80 40~60 14
J 1140 355 80 40~60 15

solar-9-3-1-1

Product Detail

solar-9-3-1-3
solar-9-3-1-4
solar-9-3-1-7
solar-9-3-1-5
solar-9-3-1-6 (1)

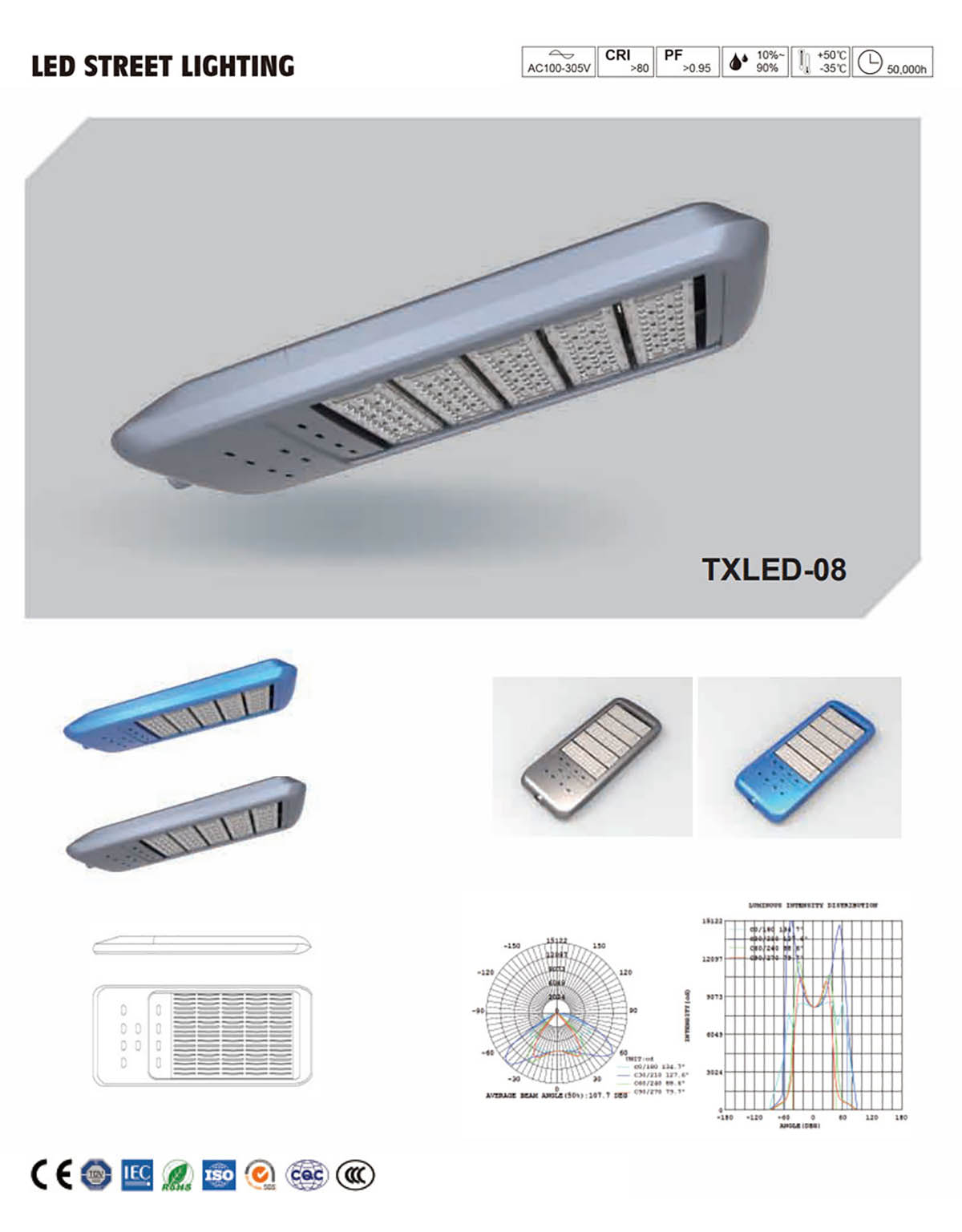

Technical Data

solar-9-3-1-2

Model Number TXLED-08 (A/B/C/D/E)
Chip Brand Lumileds/Bridgelux
Light Distribution Bat Type
Driver Brand Philips/Meanwell
Input Voltage AC90-305V, 50-60HZ, DC12V/24V
Luminous Efficiency 160lm/W
Color Temperature 3000-6500K
Power Factor >0.95
CRI >RA75
Material Die Cast Aluminium Housing
Protection Class IP67, IK10
Working Temp -30 °C~+60 °C
Certificates CE, RoHS
Life Span >80000h
Warranty 5 Years

Multiple Light Distribution Options

2-8-1
