We believe in: Innovation is our soul and spirit. Quality is our life. Customer need is our God for Solar Induction Street Light, Street Lamp Solar Panel, Led Lightpole, If needed, welcome to make contact with us by our web page or phone consultation, we will be delighted to serve you.
Factory Price Historic Lamp Posts - TX LED 11 -Tianxiang Detail:

Technical Data

Model AYLD-001A AYLD-001B AYLD-001C AYLD-001D
Wattage 60W-100W 120W-150W 200W-240W 200W-240W
Average Lumen around 120 LM/W around 120 LM/W around 120 LM/W around 120 LM/W
Chip Brand PHILIPS/CREE/Bridgelux PHILIPS/CREE/Bridgelux PHILIPS/CREE/Bridgelux PHILIPS/CREE/Bridgelux
Driver Brand MW/PHILIPS/lnventronics MW/PHILIPS/lnventronics MW/PHILIPS/lnventronics MW/PHILIPS/lnventronics
Power Factor >0.95 >0.95 >0.95 >0.95
Voltage Range 90V-305V 90V-305V 90V-305V 90V-305V
Surge Protection(SPD) 10KV/20KV 10KV/20KV 10KV/20KV 10KV/20KV
Insulation Class Class I/II Class I/II Class I/II Class I/II
CCT. 3000-6500K 3000-6500K 3000-6500K 3000-6500K
CRI. >70 >70 >70 >70
Working Temperature (-35°C to 50°C ) (-35°C to 50°C) (-35°C to 50°C) (-35°C to 50°C )
IP Class IP66 IP66 IP66 IP66
IK Class ≥IK08 ≥ IK08 ≥IK08 ≥IK08
Lifetime (Hours) >50000 hours >50000 hours >50000 hours >50000 hours
Material Diecasting aluminium Diecasting aluminium Diecasting aluminium Diecasting aluminium
Photocell base With With With With
Packing Size 684 x 263 x 126mm 739 x 317 x 126mm 849 x 363 x 131mm 528 x 194x 88mm
Installation Spigot 60mm 60mm 60mm 60mm

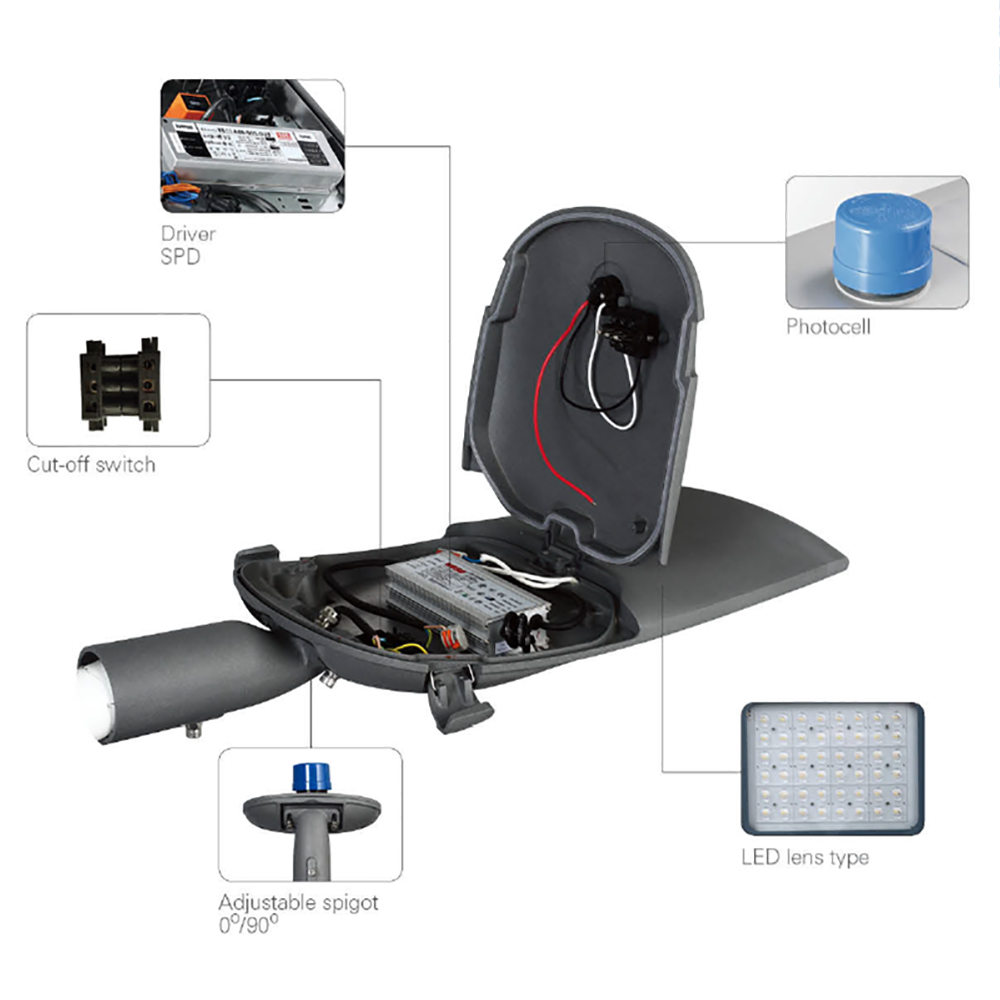

TX LED 11（3）

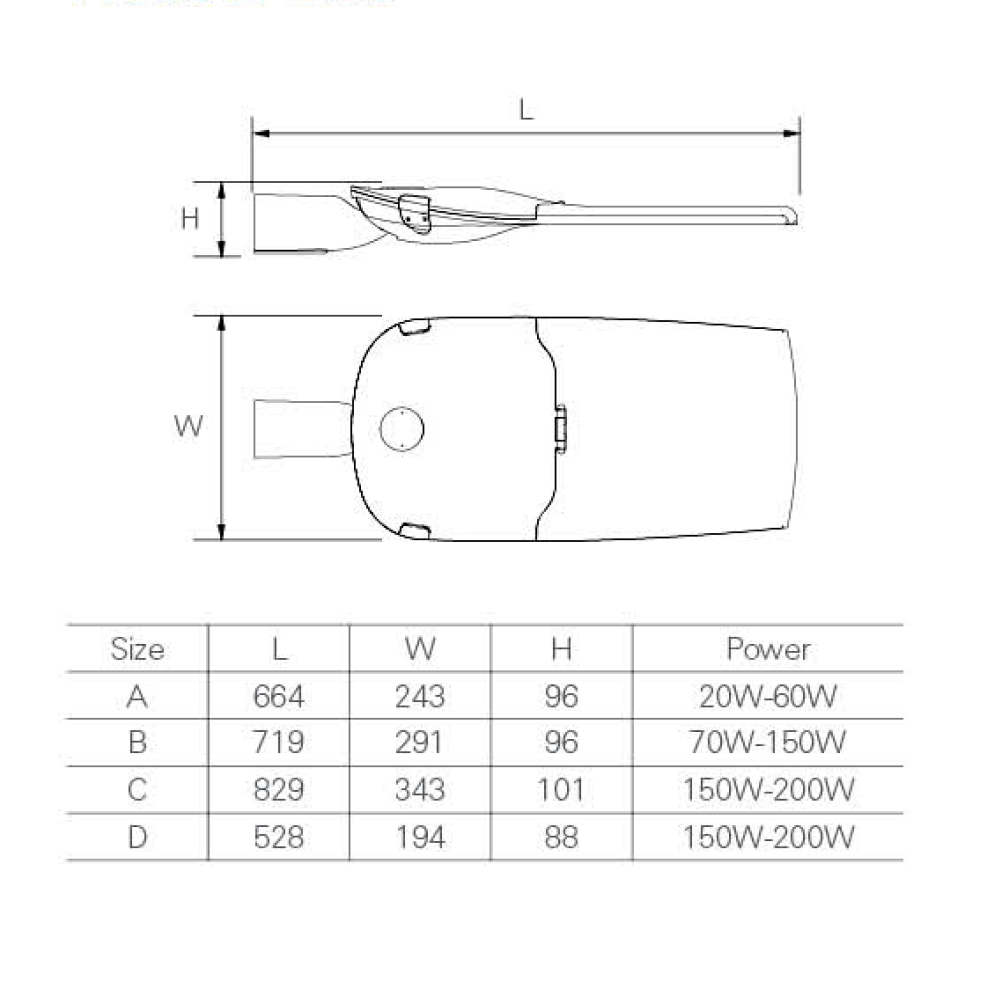

TX LED 11（4）

Multiple Light Distribution Options

2-8-1

Product detail pictures:

Factory Price Historic Lamp Posts - TX LED 11 -Tianxiang detail pictures

Factory Price Historic Lamp Posts - TX LED 11 -Tianxiang detail pictures
