Bat Wing All In One Solar Street Light

Short Description:

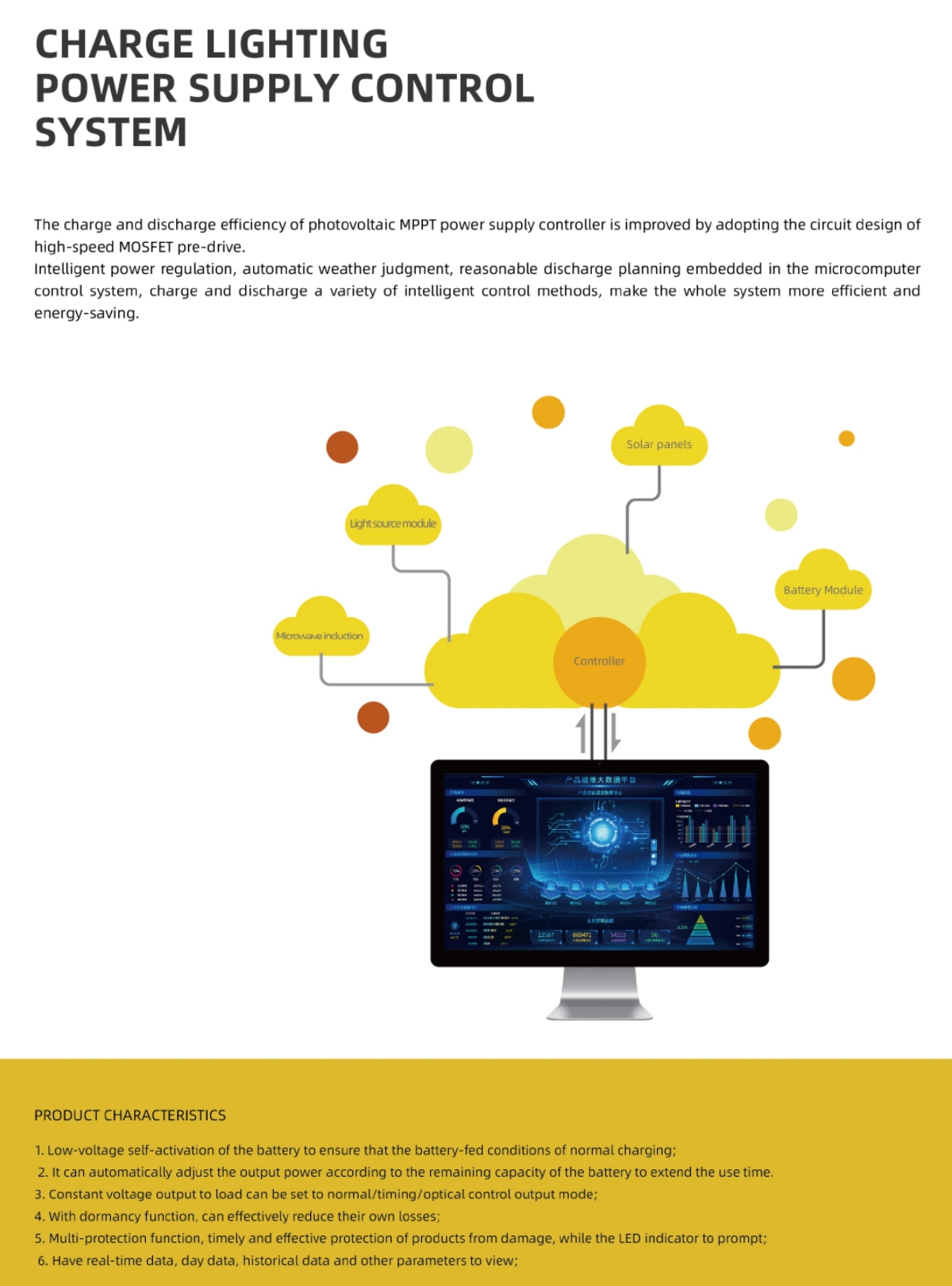

1. Low-voltage self- activation of the battery to ensure that the battery-fed conditions of normal charging;

2. It can automatically adjust the output power according to the remaining capacity of the battery to extend the use time.

3. Constant voltage output to load can be set to normal/timing/optical control output mode;

4. With dormancy function, can effectively reduce their own losses;

5. Multi-protection function, timely and effective protection of products from damage, while the LED indicator to prompt;

6. Have real-time data, day data, historical data and other parameters to view.


  • facebook (2)
  • youtube (1)

DOWNLOAD
RESOURCES

Product Detail

Product Tags

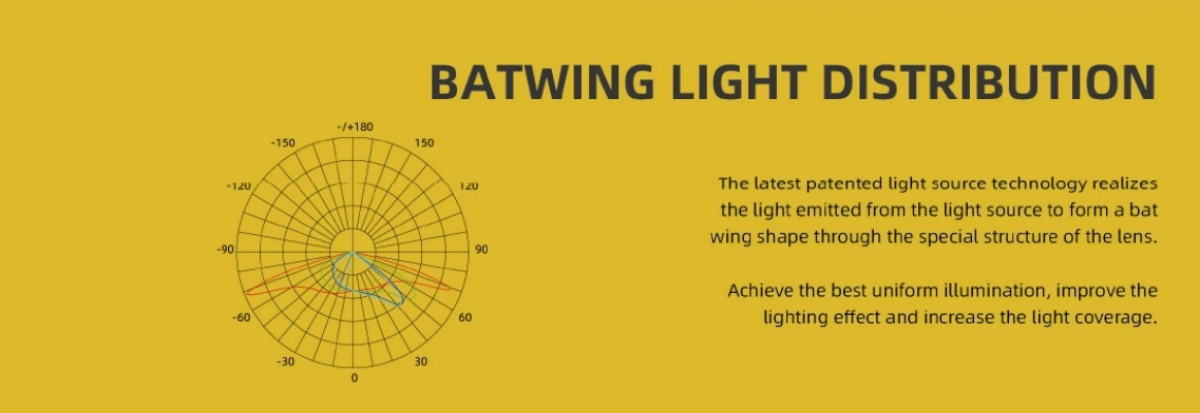

Bat Wing Light Distribution

Bat-wing light distribution has unique light distribution characteristics and is suitable for a variety of scenarios.

Urban road lighting:  It is widely used in road lighting, such as main roads, secondary roads, and branch roads in cities. It can evenly distribute light on the road surface, provide a good visual environment for vehicles and pedestrians, and improve road safety and traffic efficiency. At the same time, it reduces light interference to residents and buildings around the road.

Highway lighting:  Although highways usually use high-intensity gas discharge lamps such as high-pressure sodium lamps, bat wing light distribution can also play an important role. It can focus the light on the lane, provide sufficient lighting for high-speed vehicles, help drivers clearly identify road signs, markings, and the surrounding environment, reduce visual fatigue, and reduce the incidence of traffic accidents.

Parking lot lighting:  Whether it is an indoor parking lot or an outdoor parking lot, the bat wing light distribution can provide good lighting effects. It can accurately illuminate parking spaces, passages, entrances, and exits, facilitate vehicle parking and pedestrian walking, and improve the safety and efficiency of parking lots.

Industrial park lighting:  Roads in industrial parks, areas around factories, etc., are also suitable for lighting with lamps with bat wing light distribution. It can provide sufficient light for industrial production activities, ensure the safety of workers working at night, and also help improve the overall security level of the park.

batwing light distribution

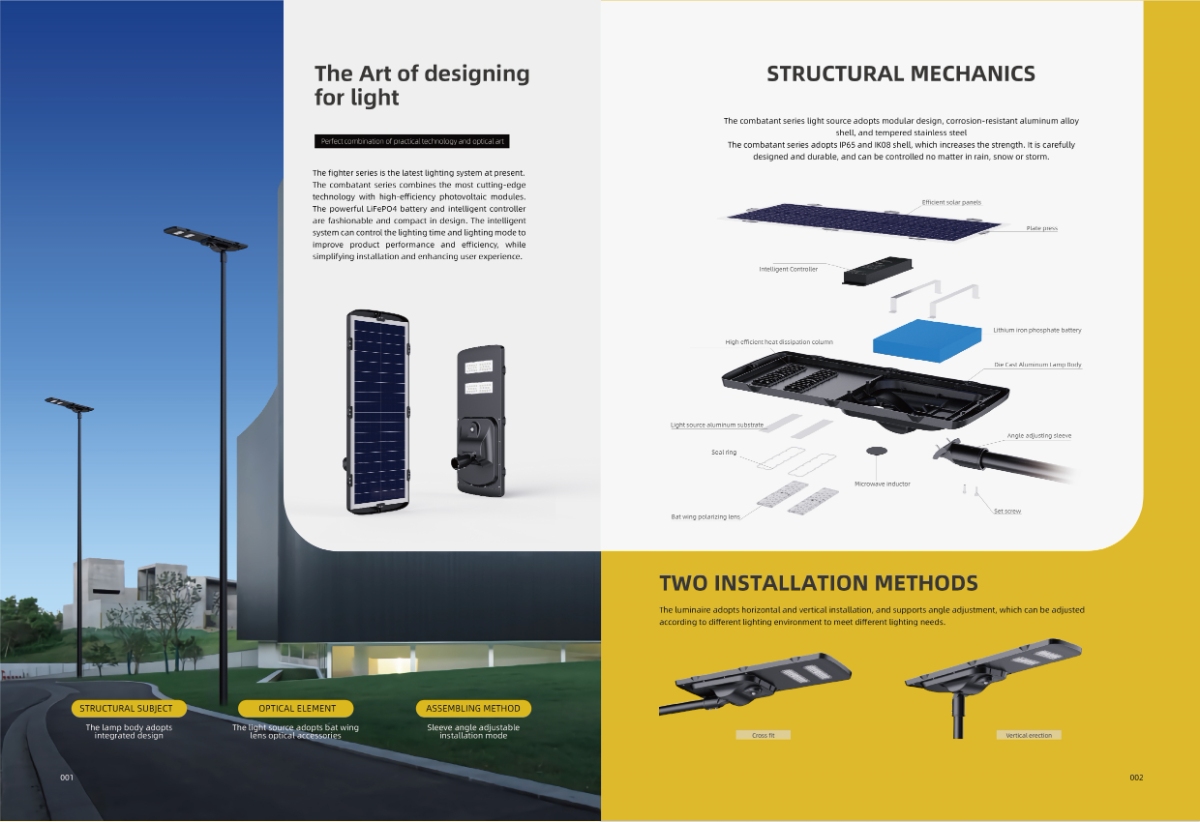

Products Description

New design all in one solar street light
New design all in one solar street light
New design all in one solar street light

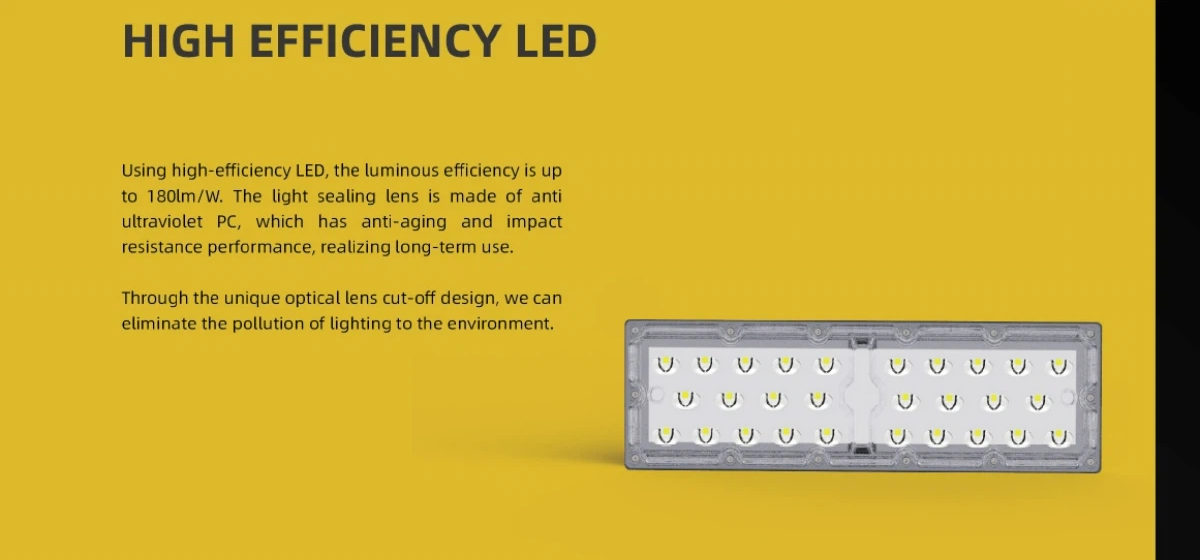

LED modules
New design all in one solar street light

Product Technical Parameter

Technical parameter

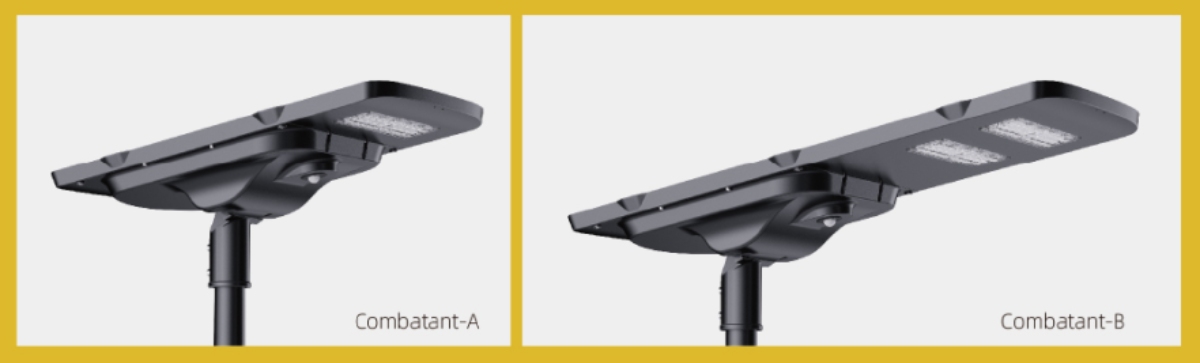

Product model Combatant-A Combatant-B Combatant-C Combatant-D Combatant-E
Rated power 40W 50W-60W 60W-70W 80W 100W
System voltage 12V 12V 12V 12V 12V

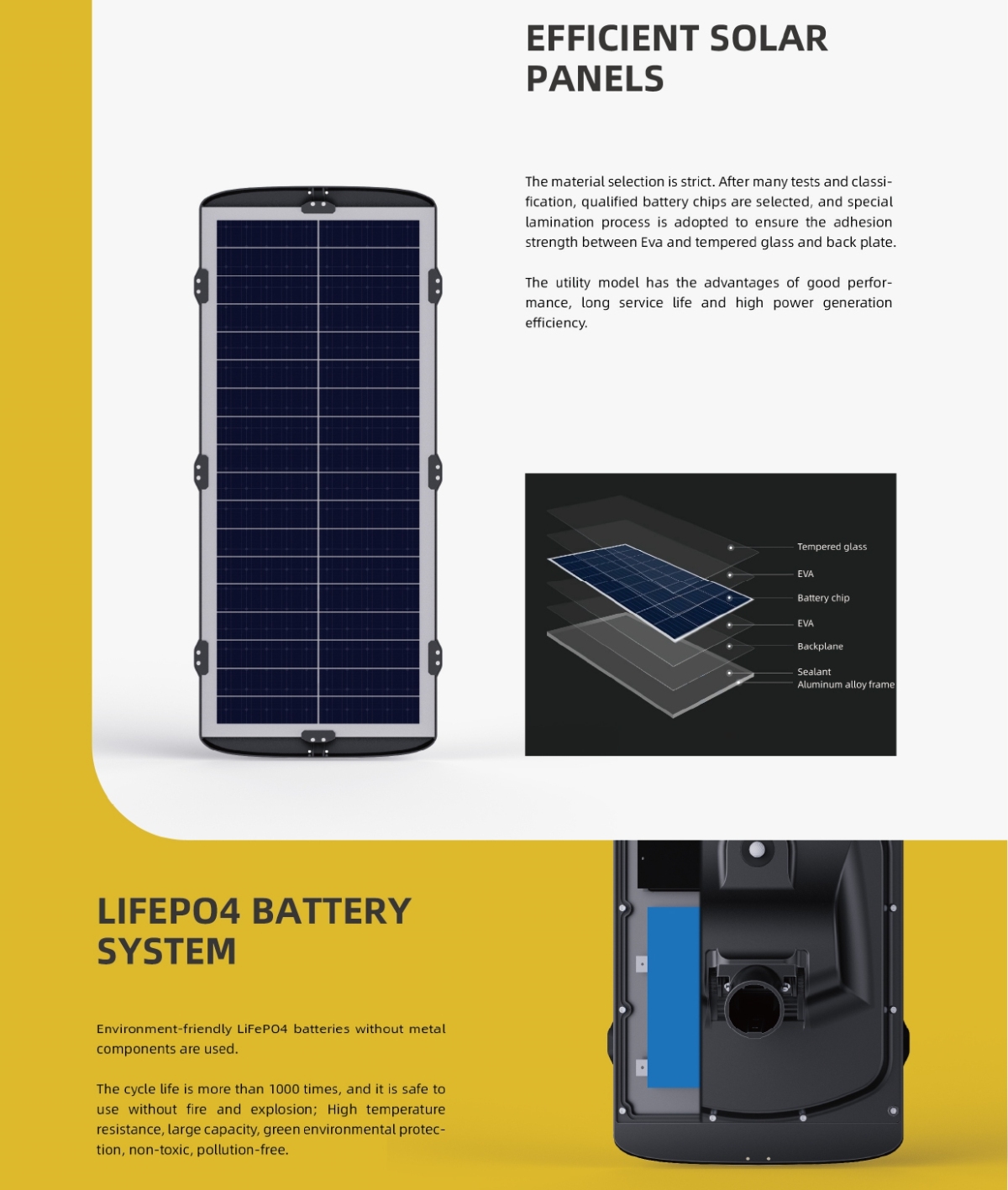

Lithium battery (LiFePO4) 12.8V/18AH 12.8V/24AH 12.8V/30AH 12.8V/36AH 12.8V/142AH
Solar panel 18V/40W 18V/50W 18V/60W 18V/80W 18V/100W
Light source type Bat Wing for light
luminous efficiency 170L m/W
LED life 50000H
CRI CRI70/CR80
CCT 2200K -6500K
IP IP66
IK IK09
Working Environment -20℃~45℃. 20%~-90% RH
Storage Temperature -20℃-60℃.10%-90% RH
Lamp body material Aluminum die-casting
Lens Material PC Lens PC
Charge Time 6 Hours
Working Time 2-3 Days (Auto Control)
Installation height 4-5m 5-6m 6-7m 7-8m 8-10m
Luminaire N.W /kg /kg /kg /kg /kg

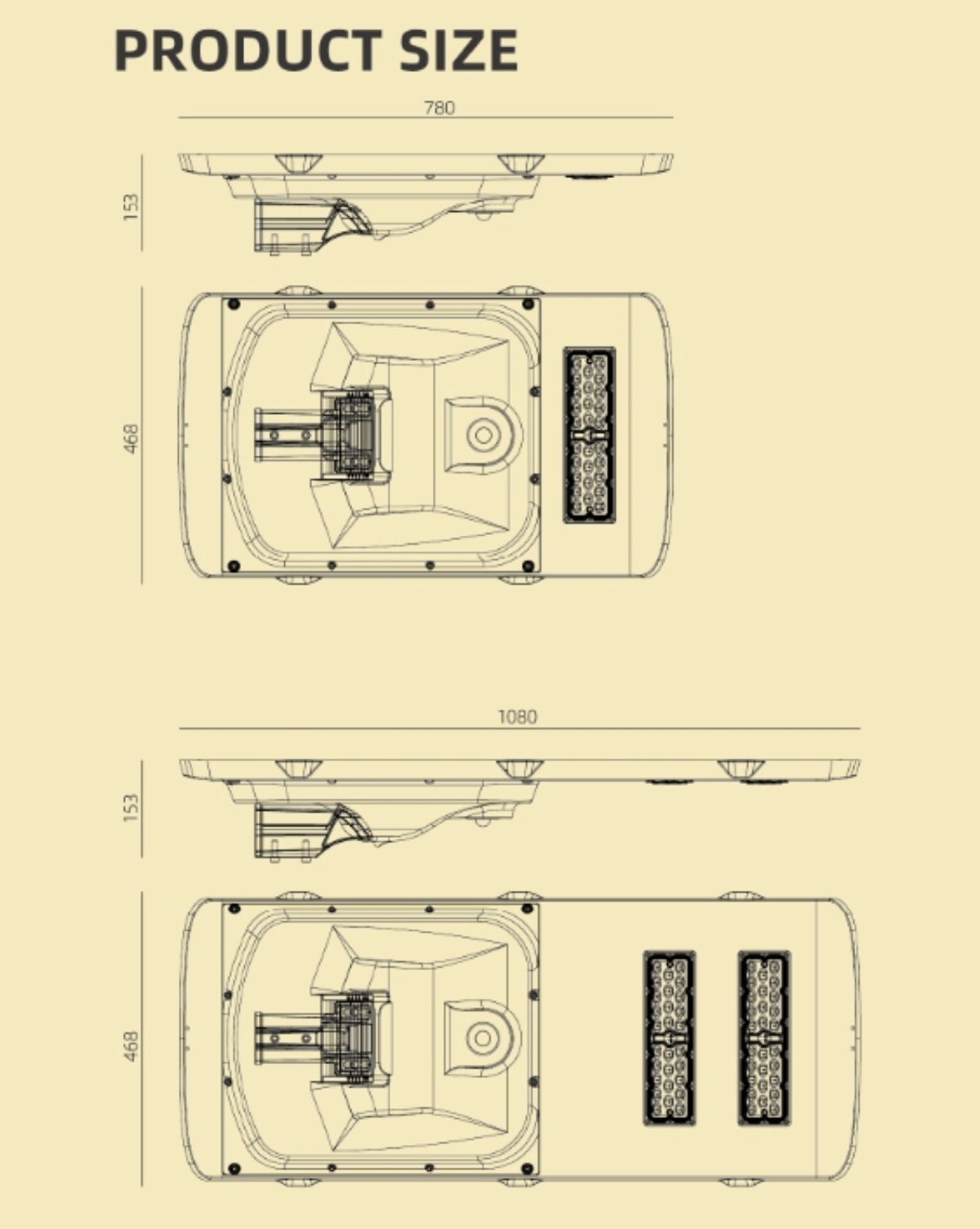

Product Size

size
product size

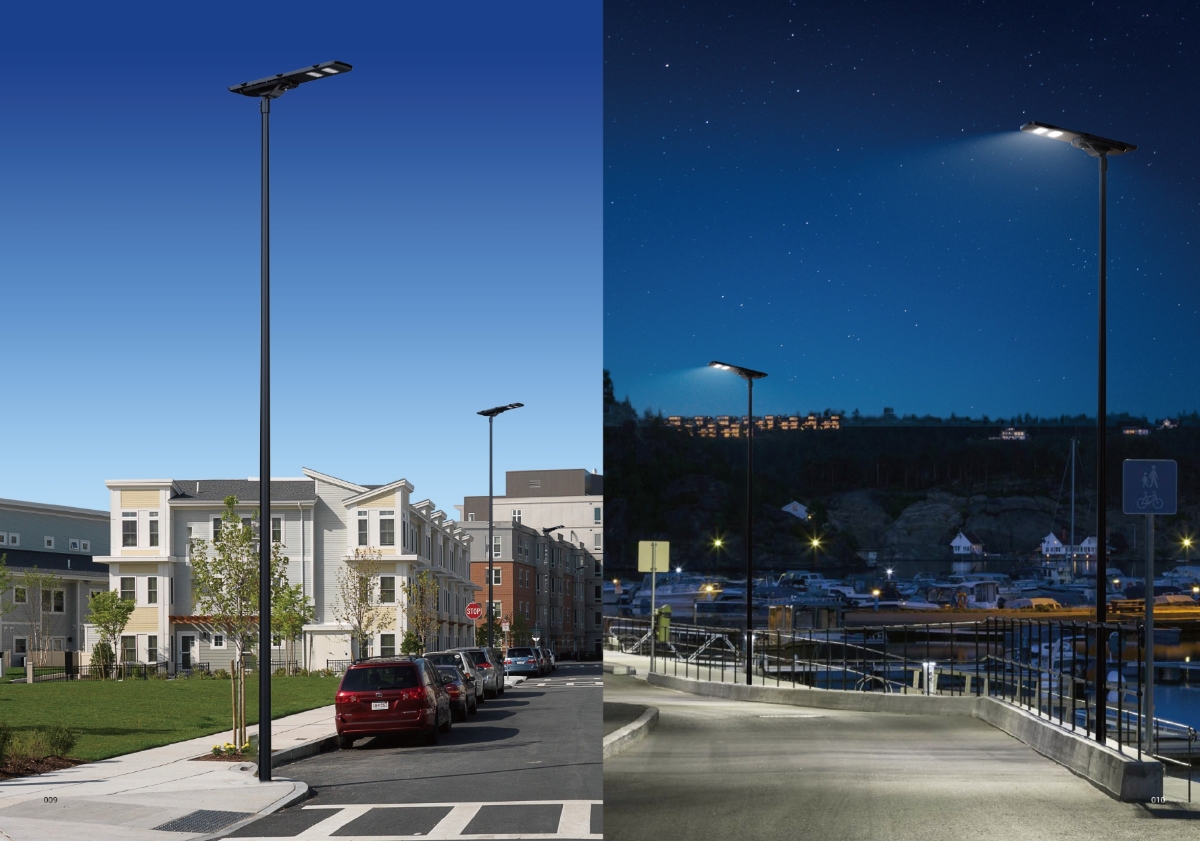

Application

application

Our Certifications

Certificate
