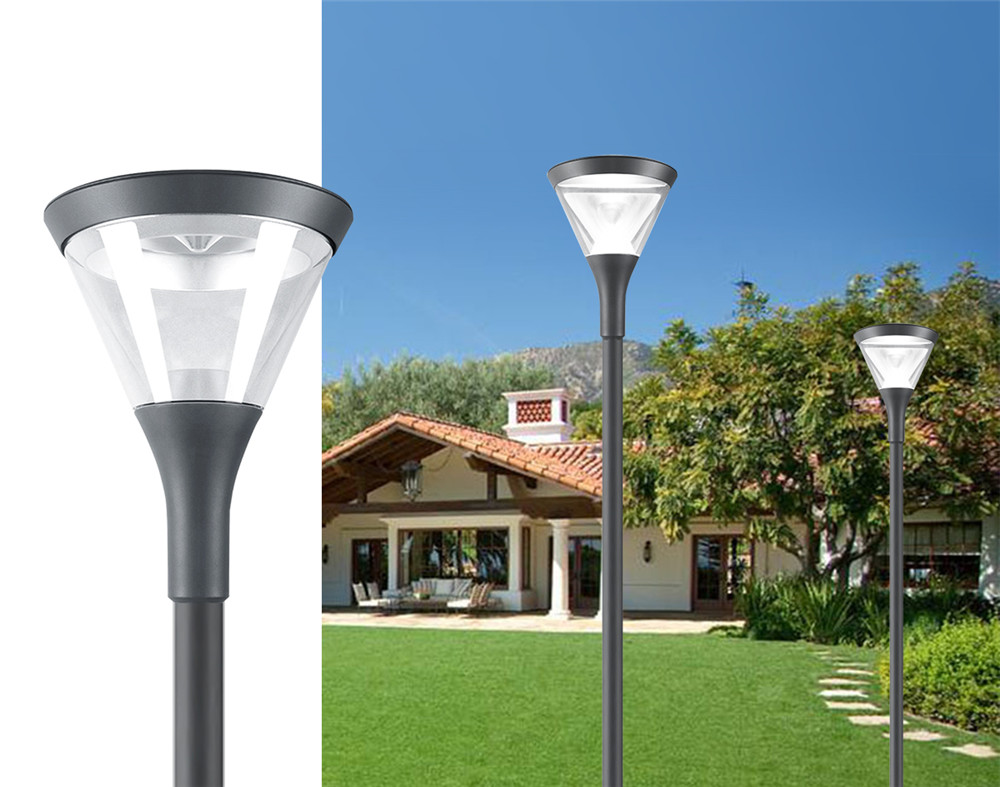

LED Outdoor Lighting Landscape Street Lamp
DOWNLOAD
RESOURCES
Product Specification
| TXGL-SKY1 | |||||
| Model | L(mm) | W(mm) | H(mm) | ⌀(mm) | Weight(Kg) |
| 1 | 480 | 480 | 618 | 76 | 8 |
Technical Data
|
Model Number |
TXGL-SKY1 |
|
Chip Brand |
Lumileds/Bridgelux |
|
Driver Brand |
Meanwell |
|
Input Voltage |
AC 165-265V |
|
Luminous Efficiency |
160lm/W |
|
Color Temperature |
2700-5500K |
|
Power Factor |
>0.95 |
|
CRI |
>RA80 |
|
Material |
Die Cast Aluminium Housing |
|
Protection Class |
IP65, IK09 |
|
Working Temp |
-25 °C~+55 °C |
|
Certificates |
BV, CCC, CE, CQC, ROHS, Saa, SASO |
|
Life Span |
>50000h |
|
Warranty |
5 Years |

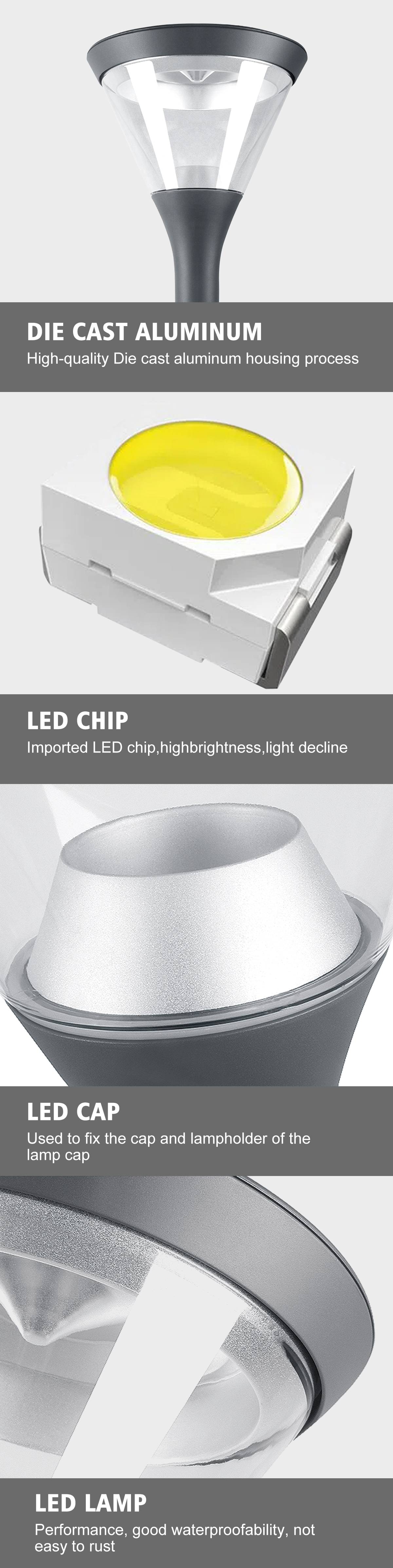

Product Details
Product Function
1. Lighting
The most basic function of LED Garden Light is lighting, ensuring traffic safety, improving transportation efficiency, protecting personal safety, and providing a comfortable environment.
2. Enrich the space content of the courtyard
Through the contrast between light and dark, the courtyard lights highlight the landscape to be expressed in a background with low ambient brightness, attracting people's attention.
3. The Art of Decorating Garden Space
The decorative function of courtyard lighting design can embellish or strengthen the space through the shape and texture of the lamps themselves and the arrangement and combination of lamps.
4. Create a sense of atmosphere
The organic combination of points, lines and surfaces is used to highlight the three-dimensional layering of the courtyard, and the art of light is scientifically applied to create a warm and beautiful atmosphere.
Color Temperature Selection
LED Garden Light In garden landscape lighting, we must choose the appropriate light source color according to the environment. Generally, the color temperature of LED light source is 3000k-6500k; the lower the color temperature, the more yellow the luminous color. On the contrary, the higher the color temperature, the whiter the light color. For example, the light emitted by LED garden lights with a color temperature of 3000K belongs to warm yellow light. Therefore, when choosing the color of the light source, we can choose a light color according to this theory. Usually parks use 3000 color temperature, such as garden led garden lights with functional lighting, we usually choose white light above 5000k.
Style Selection
1. The style of garden lamps can be selected to match the style of the garden. If there is a choice obstacle, you can choose square, rectangular and versatile with simple lines. Color, choose black, dark gray, bronze mostly. In general, use less white.
2. For garden lighting, energy-saving lamps, LED lamps, metal chloride lamps, and high-pressure sodium lamps should be used. Generally choose floodlights. Simple understanding means that the top is covered, and after the light is emitted, the top is covered and then reflected outward or downward. Avoid direct lighting directly upwards, which is very dazzling.
3. Arrange LED Garden Light appropriately according to the size of the road. If the road is larger than 6m, it should be arranged symmetrically on both sides or in a "zigzag" shape, and the distance between the lamps should be kept between 15 and 25m; between.
4. LED Garden Light controls the illuminance between 15~40LX, and the distance between the lamp and the roadside is kept within 0.3~0.5m.
-
