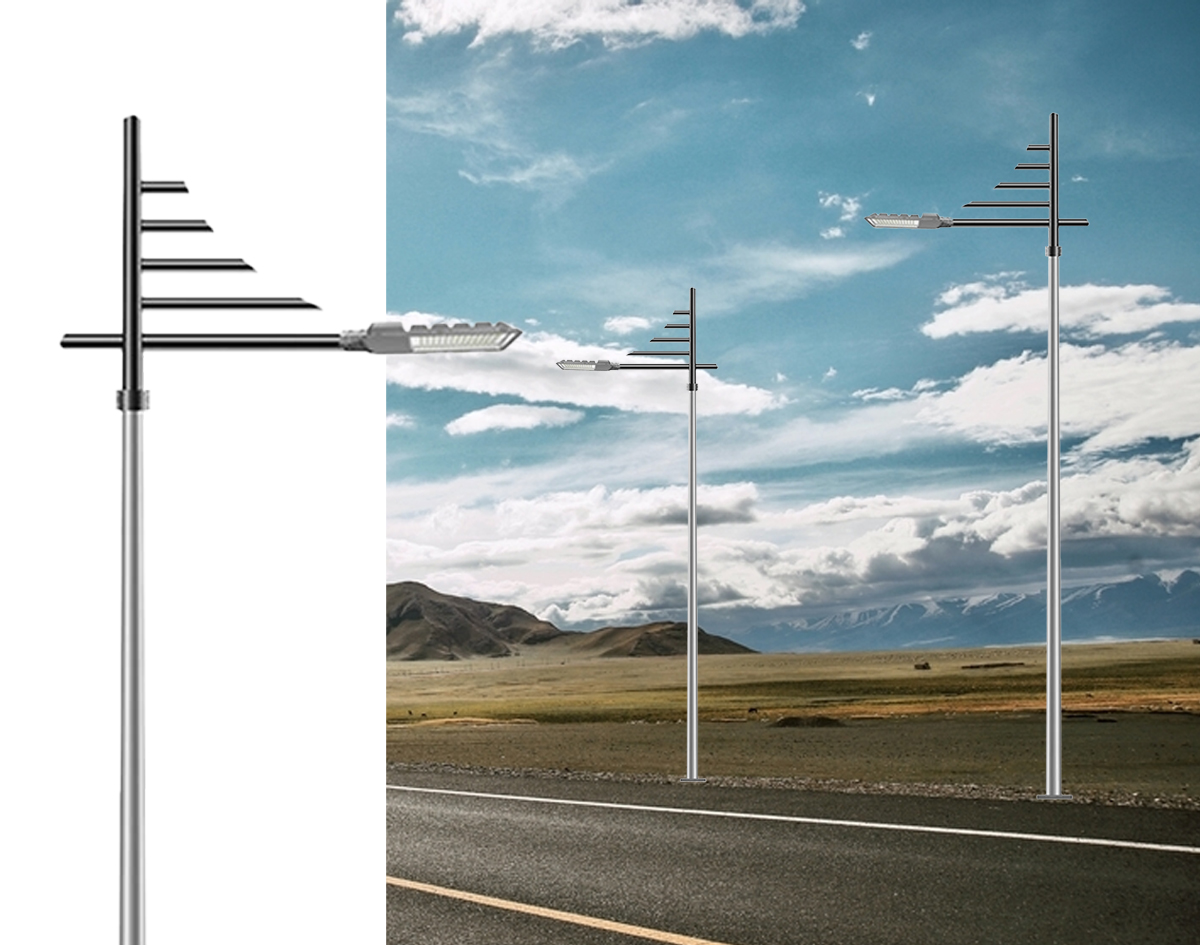

Special Shape Customized Light Pole
DOWNLOAD
RESOURCES
Technical Data
| Height | 5M | 6M | 7M | 8M | 9M | 10M | 12M |
| Dimensions(d/D) | 60mm/150mm | 70mm/150mm | 70mm/170mm | 80mm/180mm | 80mm/190mm | 85mm/200mm | 90mm/210mm |
| Thickness | 3.0mm | 3.0mm | 3.0mm | 3.5mm | 3.75mm | 4.0mm | 4.5mm |
| Flange | 260mm*14mm | 280mm*16mm | 300mm*16mm | 320mm*18mm | 350mm*18mm | 400mm*20mm | 450mm*20mm |
| Tolerance of dimension | ±2/% | ||||||
| Minimum yield strength | 285Mpa | ||||||
| Max ultimate tensile strength | 415Mpa | ||||||
| Anti-corrosion performance | Class II | ||||||
| Against earthquake grade | 10 | ||||||
| Color | Customized | ||||||
| Shape Type | Conical pole, Octagonal pole, Square pole, Diameter pole | ||||||
| Arm Type | Customized: single arm, double arms, triple arms, four arms | ||||||
| Stiffener | With a big size to strengthen the pole to resist the wind | ||||||
| Powder coating | Thickness of powder coating>100um.Pure polyester plastic powder coating is stable and with strong adhesion & strong ultraviolet ray resistance. Film thickness is more than 100 um and with strong adhesion. The surface is not peeling even with blade scratch (15×6 mm square). | ||||||
| Wind Resistance | According to local weather conditions, General design strength of wind resistance is ≥150KM/H | ||||||
| Welding Standard | No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects. | ||||||
| Anchor bolts | Optional | ||||||
| Material | Aluminium | ||||||
| Passivation | Available | ||||||
Project Presentation
Product Advantages
1. Aluminum light pole has good corrosion resistance, which ensures the corrosion resistance of the product in the natural environment.
2. Light in weight, the weight of the aluminum light pole is only 1/3 of the iron light pole, which is convenient for installation and transportation.
3. The surface of the aluminum light pole is smooth and delicate, perfectly presenting the metal color of the aluminum alloy. Various surface treatments.
4. Maintenance-free, longer life than iron light poles and fiberglass light poles.
5. It can be 100% recycled, and the melting temperature is low, saving energy and reducing emissions.
6. The plug-in installation method can be adopted, which is convenient and simple to install.
7. The amplitude of aluminum light pole is smaller than that of FRP light pole.
Certificate
Product Process
Anodizing is used as the standard for aluminum pole surface treatment, because anodizing can provide the best surface condition. Aluminum rods polished in the original color of the hair are very easy to change color, blacken or even corrode in areas with serious environmental pollution, such as seaside, intersections and roads in saline-alkali land. However, anodizing can ensure that the surface of the aluminum pole, the protruding cantilever and other accessories are not corroded.
Anodizing is the electrochemical process of producing an oxide layer on the surface of a metal. There are several different specifications for the thickness of the oxide layer, which are mainly determined by the installation location and the local environment. The thickness of the standard anodized layer is 12μm, which can ensure that the aluminum pole will not be corroded in a humid environment.
Generally, the anodizing process of aluminum pole is: Degreasing -- Washing -- Washing -- Alkali Washing -- Washing -- Washing -- Light -- Washing -- Pure Water -- Anodizing -- Washing -- Washing -- Coloring ( Electrolysis/Chemical)-Washing-Washing-Sealing.
Exhibition
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
In our company, we pride ourselves on being an established manufacturing facility. Our state-of-the-art factory has the latest machinery and equipment to ensure that we can provide our customers with the highest quality products. Drawing on years of industry expertise, we continually strive to deliver excellence and customer satisfaction.
2. Q: What's your main product?
A: Our main products are Solar Street Lights, Poles, LED Street Lights, Garden Lights and other customized products etc.
3. Q: How long is your lead time?
A: 5-7 working days for samples; around 15 working days for bulk order.
4. Q: What's your shipping way?
A: By air or sea ship are available.
5. Q: Do you have OEM/ODM service?
A: Yes.
Whether you are looking for custom orders, off-the-shelf products or custom solutions, we offer a wide range of products to meet your unique needs. From prototyping to series production, we handle every step of the manufacturing process in-house, ensuring we can maintain the highest standards of quality and consistency.
-
