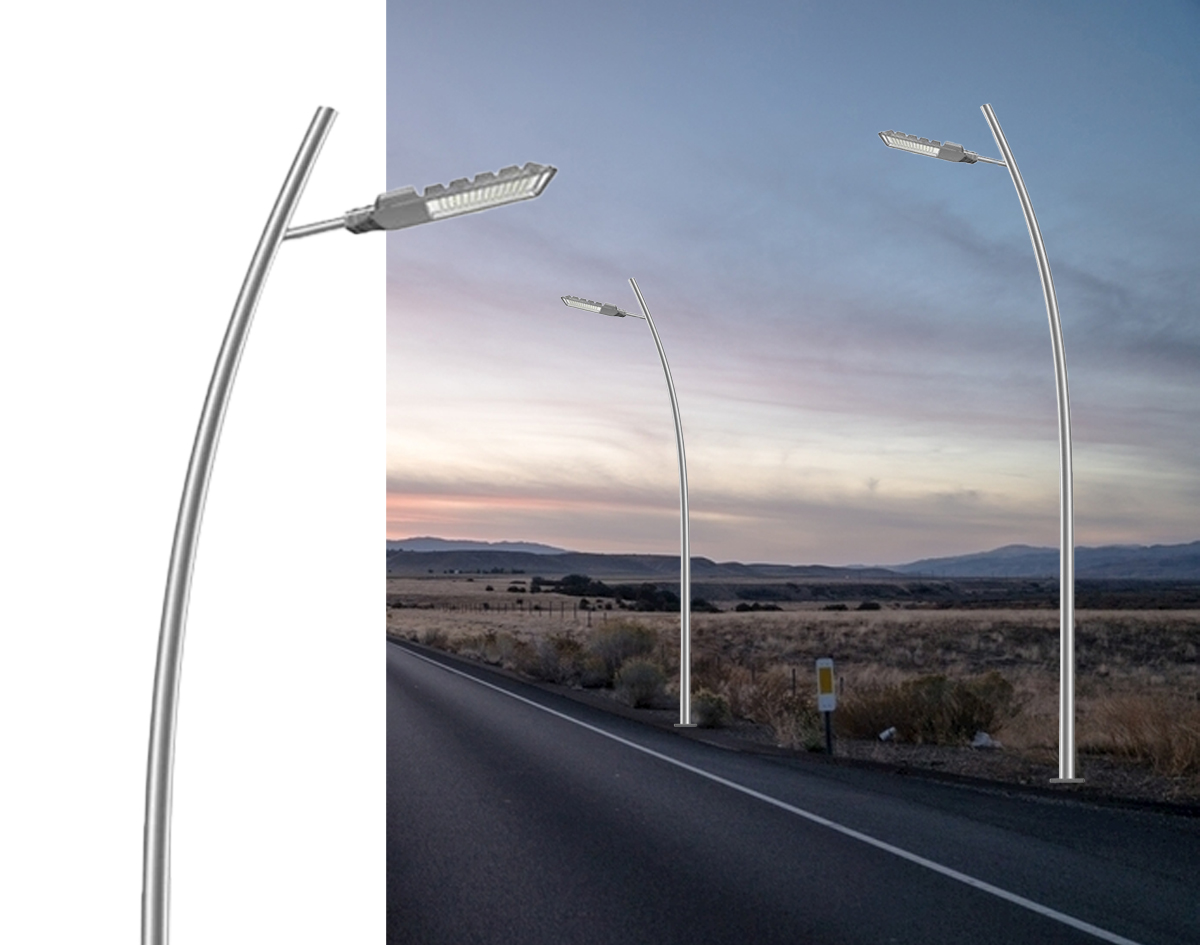

Single Arm Curved Aluminum Light Pole
DOWNLOAD
RESOURCES
Product Description
Aluminum lamp poles are carefully crafted from high-quality aluminum to ensure superior strength and durability. The light pole is lightweight, durable, and built to withstand all weather conditions, making it a perfect choice for residential and commercial outdoor spaces.
One of the outstanding features of our aluminum lamp poles is their advanced bending process. Through precision engineering, we have developed a revolutionary technology that enables seamless bends and curves in structures. This innovative process not only enhances the visual appeal of the light pole but also significantly increases its strength and stability.
The bending process used in the manufacturing of our aluminum lamp poles creates a sleek, modern design that blends easily into any outdoor setting. Whether lighting a road, park, or parking lot, this light pole's elegant shape adds a touch of sophistication to any environment.
In addition to their beauty, aluminum lamp poles offer excellent functionality. It is designed to accommodate a variety of lighting fixtures, including LED lights, to meet your specific lighting requirements. The sturdy structure of the light pole ensures the stability and safety of the lighting fixture, preventing any potential accidents or damage.
We know that ease of installation and maintenance are crucial factors when it comes to outdoor lighting solutions. That's why our aluminum lamp poles are designed for easy installation and simplified maintenance. Aluminum is lightweight for easy transportation and hassle-free installation, saving you time and energy. In addition, the corrosion-resistant properties of aluminum make it easy to clean and maintain, ensuring a long service life.
Investing in our aluminum lamp poles means investing in a lighting solution that is not only visually appealing but also environmentally friendly. Aluminum is a highly sustainable material as it can be recycled repeatedly without losing its quality. By choosing our products, you can contribute to protecting our planet by reducing waste and conserving natural resources.
Technical Data
| Height | 5M | 6M | 7M | 8M | 9M | 10M | 12M |
| Dimensions(d/D) | 60mm/150mm | 70mm/150mm | 70mm/170mm | 80mm/180mm | 80mm/190mm | 85mm/200mm | 90mm/210mm |
| Thickness | 3.0mm | 3.0mm | 3.0mm | 3.5mm | 3.75mm | 4.0mm | 4.5mm |
| Flange | 260mm*14mm | 280mm*16mm | 300mm*16mm | 320mm*18mm | 350mm*18mm | 400mm*20mm | 450mm*20mm |
| Tolerance of dimension | ±2/% | ||||||
| Minimum yield strength | 285Mpa | ||||||
| Max ultimate tensile strength | 415Mpa | ||||||
| Anti-corrosion performance | Class II | ||||||
| Against earthquake grade | 10 | ||||||
| Color | Customized | ||||||
| Shape Type | Conical pole, Octagonal pole, Square pole, Diameter pole | ||||||
| Arm Type | Customized: single arm, double arms, triple arms, four arms | ||||||
| Stiffener | With a big size to strengthen the pole to resist the wind | ||||||
| Powder coating | Thickness of powder coating>100um.Pure polyester plastic powder coating is stable and with strong adhesion & strong ultraviolet ray resistance. Film thickness is more than 100 um and with strong adhesion. The surface is not peeling even with blade scratch (15×6 mm square). | ||||||
| Wind Resistance | According to local weather conditions, the general design strength of wind resistance is ≥150KM/H | ||||||
| Welding Standard | No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects. | ||||||
| Anchor bolts | Optional | ||||||
| Material | Aluminium | ||||||
| Passivation | Available | ||||||
Customization
Product Show
Our Exhibition
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
In our company, we pride ourselves on being an established manufacturing facility. Our state-of-the-art factory has the latest machinery and equipment to ensure that we can provide our customers with the highest quality products. Drawing on years of industry expertise, we continually strive to deliver excellence and customer satisfaction.
2. Q: What's your main product?
A: Our main products are Solar Street Lights, Poles, LED Street Lights, Garden Lights and other customized products etc.
3. Q: How long is your lead time?
A: 5-7 working days for samples; around 15 working days for bulk order.
4. Q: What's your shipping way?
A: By air or sea ship are available.
5. Q: Do you have OEM/ODM service?
A: Yes.
Whether you are looking for custom orders, off-the-shelf products or custom solutions, we offer a wide range of products to meet your unique needs. From prototyping to series production, we handle every step of the manufacturing process in-house, ensuring we can maintain the highest standards of quality and consistency.
-
