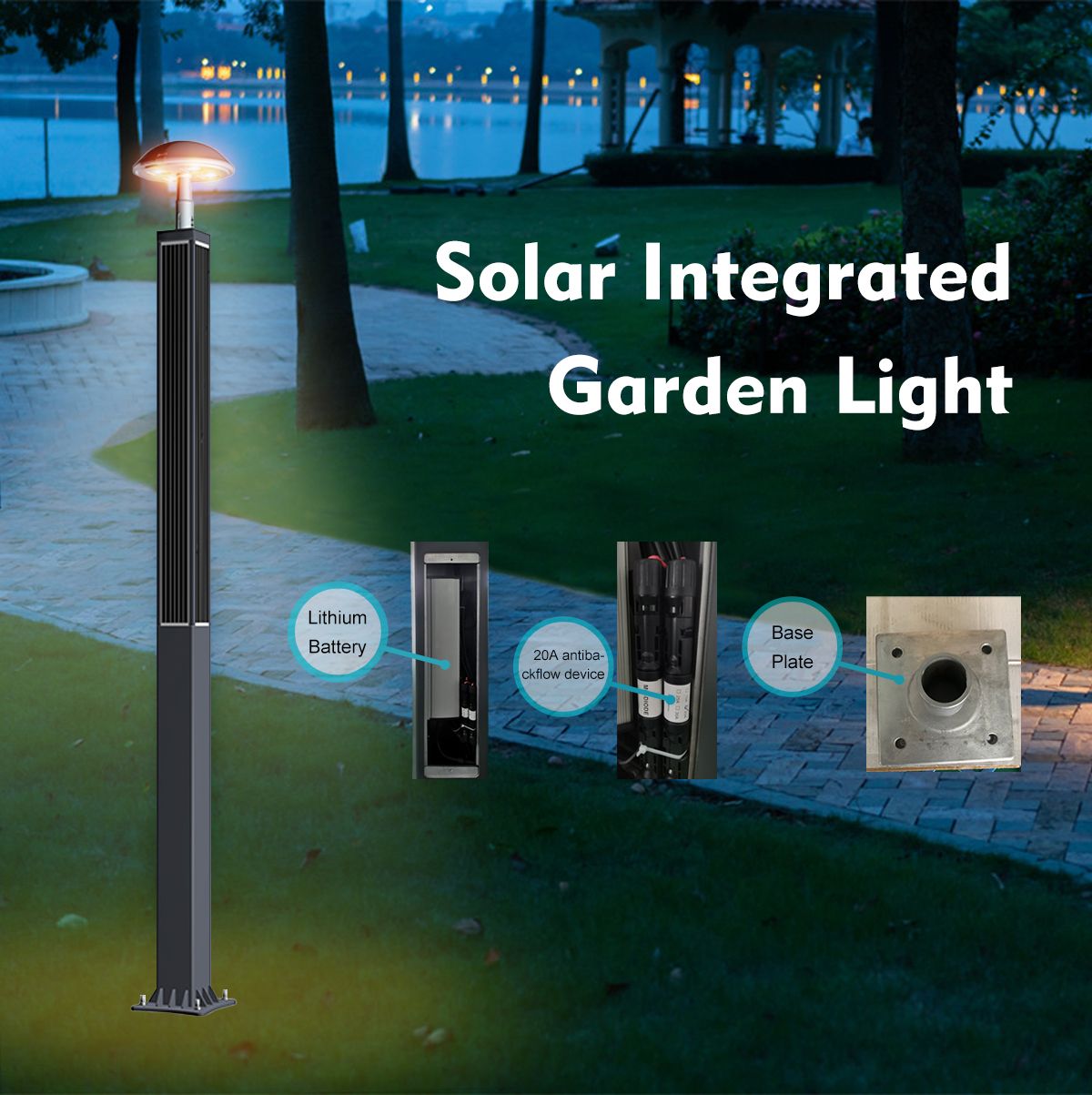

Solar Integrated Garden Light

Short Description:

Feature of the solar integrated garden light is that the solar panel is placed on the lamp post, and the battery is placed inside the lamp post, which is not only beautiful, but also converts solar energy into electricity to protect the environment.

Send email to us

DOWNLOAD
RESOURCES

Product Detail

Product Tags

Product Description

1. The modified product is easy to install because it does not need to lay cables or plugs.

2. Powered by solar panels that convert sunlight into electricity. Thus saving energy and reducing environmental impact.

3. LED light source consumes 85% less energy than incandescent bulbs and lasts 10 times longer. The battery is replaceable and lasts approximately 3 years.

Technical Data

		Garden Lighting	Street Lighting
LED Light	Lamp	TX151	TX711
	Maximum Luminous Flux	2000lm	6000lm
	Color temperature	CRI>70	CRI>70
	Standard Program	6H 100% + 6H 50%	6H 100% + 6H 50%
	LED Lifespan	> 50,000	> 50,000
Lithium Battery	Type	LiFePO4	LiFePO4
	Capacity	60Ah	96Ah
	Cycle Life	>2000 Cycles @ 90% DOD	>2000 Cycles @ 90% DOD
	IP Grade	IP66	IP66
	Operating temperature	-0 to 60 ºC	-0 to 60 ºC
	Dimension	104 x 156 x470mm	104 x 156 x 660mm
	Weight	8.5Kg	12.8Kg
Solar Panel	Type	Mono-Si	Mono-Si
	Rated Peak Power	240 Wp/23Voc	80 Wp/23Voc
	Efficiency of Solar Cells	16.40%	16.40%
	Quantity	4	8
	Line Connection	Parallel Connection	Parallel Connection
	Lifespan	>15 years	>15 years
	Dimension	200 x 200x 1983.5mm	200 x200 x3977mm
Energy Management	Controllable in Every Application Area	Yes	Yes
	Customized Working Program	Yes	Yes
	Extended Working Hours	Yes	Yes
	Rmote Control(LCU)	Yes	Yes
Light Pole	Height	4083.5mm	6062mm
	Size	200*200mm	200*200mm
	Material	Aluminum Alloy	Aluminum Alloy
	Surface Treatment	Spray Powder	Spray Powder
	Anti-theft	Special Lock	Special Lock
	Light Pole Certificate	EN 40-6	EN 40-6
	CE	Yes	Yes

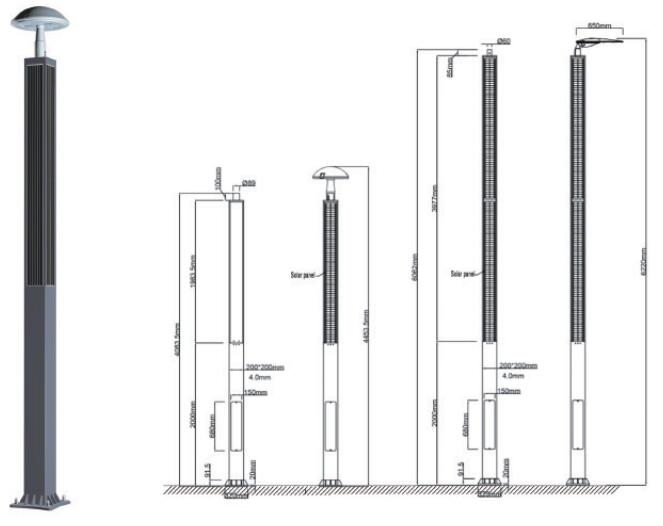

CAD

Product Applications

1. Garden decorative lighting

The solar integrated garden light has a beautiful appearance and can be customized. The material of the lamp body is various, including aluminum alloy, stainless steel, and glass, etc., which can meet the different preferences and needs of users. At the same time, the luminous effect is excellent, which can create a romantic and warm atmosphere for the courtyard.

2. Road landscape lighting

Solar integrated garden lights can also be used as an option for road and street landscape lighting. It can be used to decorate parks, squares, and communities. At night, it can bring people safe and convenient lighting, and it can also add warmth and beauty to the city.

3. Night event lighting

Solar integrated garden lights can also be used for lighting outdoor activities such as night camping and barbecues. Solar integrated garden lights do not need to be connected to a power source, and are especially suitable for outdoor activities, and the light is soft, which avoids the discomfort caused by glare and glare, and makes people completely relax.
