Solar street light GEL Battery suspension anti-theft design

Short Description:

With the continuous improvement of the conversion efficiency of solar cells, the lumens of LED chips and the production technology of lithium battery cycles, the price of the whole set of solar street lamps is becoming more and more economical, and the application is more and more extensive.

In the field of lighting, solar street lamps are the main The application model is more and more recognized and accepted, and the market is also growing.


Product Detail

Product Tags

Description

Split solar street lights usually use batteries. Hanging the batteries on the lamp pole can reduce the workload of digging a battery pit compared with the buried type. The construction cost and the installation efficiency drop in the whole project will be greatly improved. In some areas, in order to prevent the battery from being stolen and damaged, the battery will also be suspended on the light pole, but this design makes the pole more heavy and stressed, and the diameter and thickness of the light pole are compared with those of the buried type. bigger.

In this design, because the battery box is directly exposed to the sun, it is recommended that the working temperature should not exceed 55 degrees Celsius. In case of high temperature, the battery will stop working until the temperature drops. Therefore, in high temperature areas, we still recommend using buried solar street lights to prevent the battery from being damaged. Direct sunlight.

The whole set of solar street lights has a lifespan of more than 8 years and a 5-year warranty, including (solar panels, lamps, poles, batteries, embedded parts, cables and other related accessories), packaged and shipped in bulk. After arriving at the site, according to the installation guidelines, the installation time is about 30 Minutes/light, equipment such as cranes, shovels or small excavators should be prepared in advance on site.

Product Detail

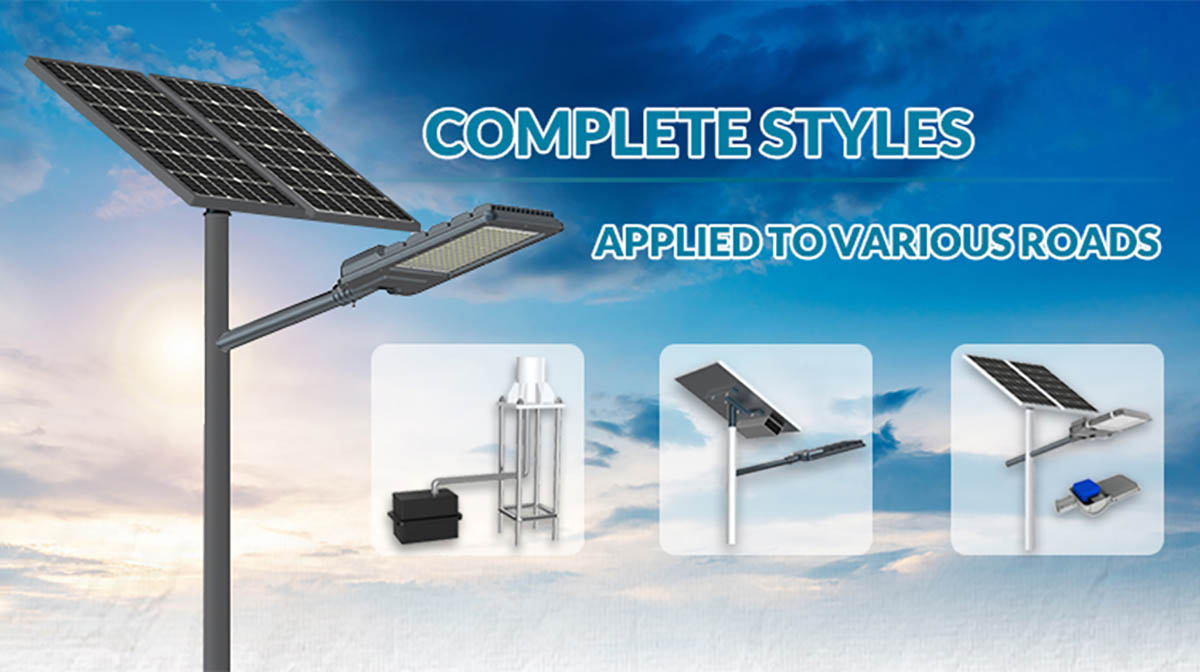

Solar-street-light-GEL-Battery-suspension-anti-theft3

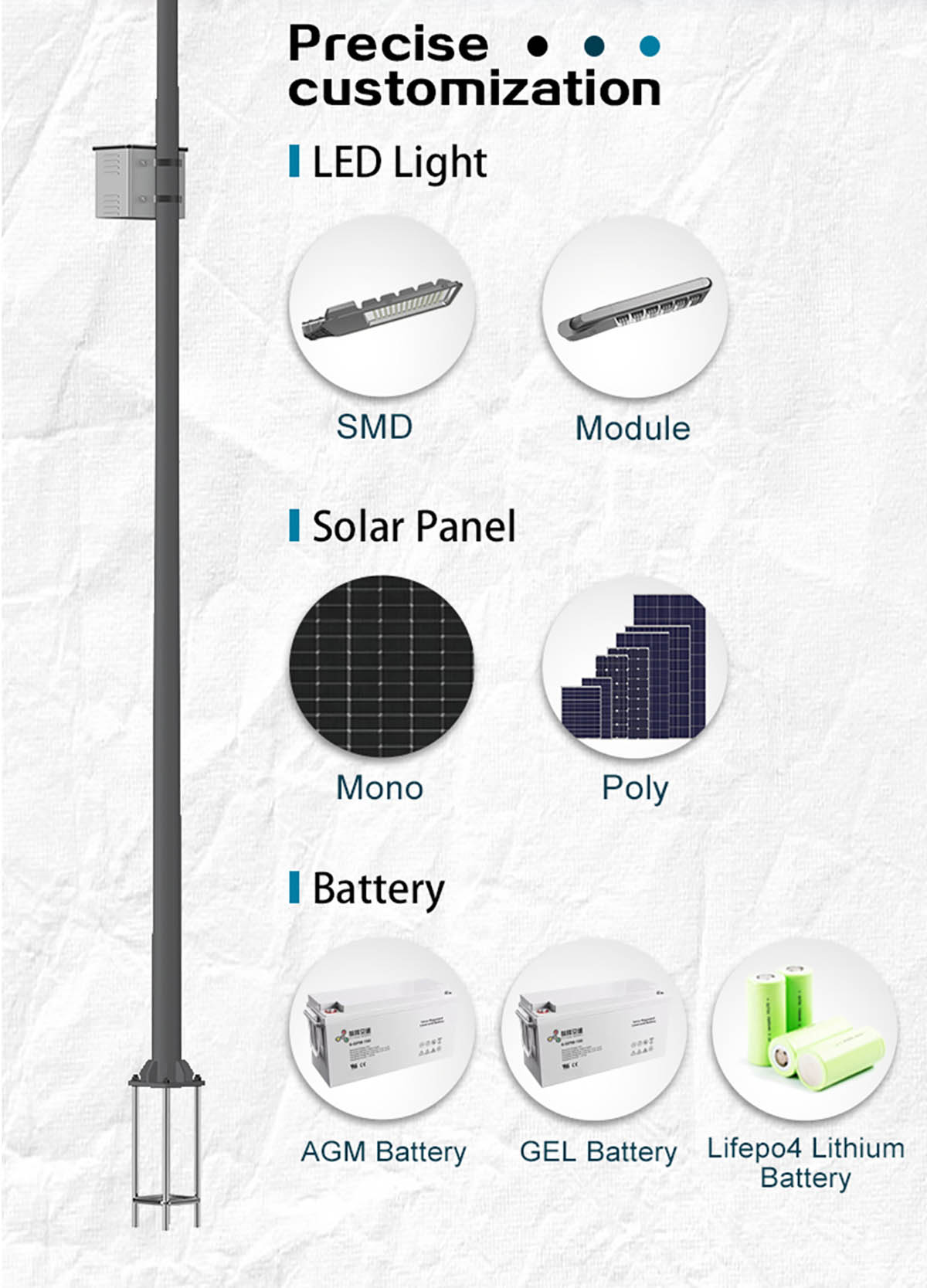

Solar-street-light-GEL-Battery-suspension-anti-theft-design-1-1
Solar-street-light-Built-in-LiFeP04-lithium-battery-2-10
Solar-street-light-GEL-Battery-suspension-anti-theft-design-3

Specification

Recommended configuration of solar street lights
6M30W
Type LED light Solar panel Battery Solar Controller Pole height
Split Solar street light(Gel) 30W 80W Mono-crystal Gel - 12V65AH 10A 12V 6M
Split Solar street light(Lithium) 80W Mono-crystal Lith - 12.8V30AH
All in one solar street light(Lithium) 70W Mono-crystal Lith - 12.8V30AH
8M60W
Type LED light Solar panel Battery Solar Controller Pole height
Split Solar street light(Gel) 60W 150W Mono crystal Gel - 12V12OAH 10A 24V 8M
Split Solar street light(Lithium) 150W Mono-crystal Lith - 12.8V36AH
All in one solar street light(Lithium) 90W Mono-crystal Lith - 12.8V36AH
9M80W
Type LED light Solar panel Battery Solar Controller Pole height
Split Solar street light(Gel) 80W 2PCS*100W Mono-crystal Gel - 2PCS*70AH 12V I5A 24V 9M
Split Solar street light(Lithium) 2PCS*100W Mono-crystal Lith - 25.6V48AH
All in one solar street light(Uthium) 130W Mono-crystal Lith - 25.6V36AH
10M100W
Type LED light Solar panel Battery Solar Controller Pole height
Split Solar street light(Gel) 100W 2PCS*12OW Mono-crystal Gel-2PCS*100AH 12V 20A 24V 10M
Split Solar street light(Lithium) 2PCS*120W Mono-crystal Lith - 24V84AH
All in one solar street light(Lithium) 140W Mono-crystal Lith - 25.6V36AH
